Linear Layer (Fully-Connected Layer)

output neuron is connected to all input neurons

• shape of tensors:

  • Input Features X: \((n,c_i)\)

  • Output Features Y: \((n,c_o)\)

  • Weights W: \((c_o,c_i)\)

  • Bias b: \((c_o,)\)

  notations	meanings
  n	batch size
  \(c_i\)	input channels
  \(c_o\)	output channels

Convolution Layer

output neuron is connected to input neurons in the receptive field

• shape of tensors:

  	1D conv	2D conv
  Input Features X	\((n,c_i,w_i)\)	\((n,c_i,h_i,w_i)\)
  Output Features Y	\((n,c_o,w_o)\)	\((n,c_o,h_o,w_o)\)
  Weights W	\((c_o,c_i,k_w)\)	\((c_o,c_i,k_h,k_w)\)
  Bias b	\((c_o,)\)	\((c_o,)\)

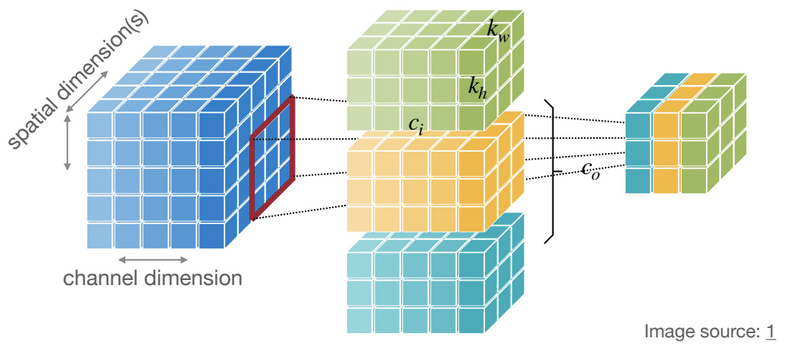

  conv3d



  \[ h_o=h_i-k_h+1 \\ w_o=w_i-k_w+1 \]

  notations	meanings
  n	batch size
  \(c_i\)	input channels
  \(c_o\)	output channels
  \(h_i,h_o\)	input/output height
  \(w_i,w_o\)	input/output width
  \(k_h\)	kernel height
  \(k_w\)	kernel width

Padding Layer

Padding can be used to keep the output feature map size is the same as input feature map size

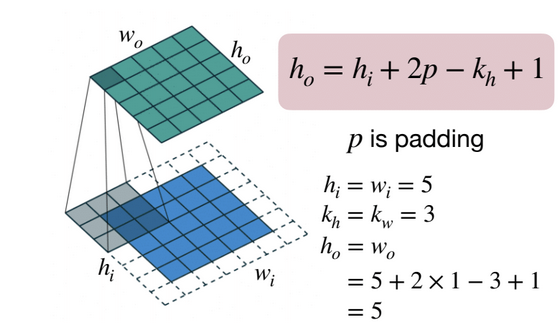

padding

Strided Convolution Layer

\[ h_o=\frac{h_i+2p-k_h}{s}+1 \]

\(s\) for stride, \(p\) for padding

Grouped Convolution Layer

A group of narrower convolutions

• shape of tensors:

  • Input Features X: \((n,c_i,h_i,w_i)\)

  • Output Features Y: \((n,c_o,h_o,w_o)\)

  • Weights W: \((g \cdot c_o/g,c_i/g, k_h,k_w)\)

  • Bias b: \((c_o,)\)

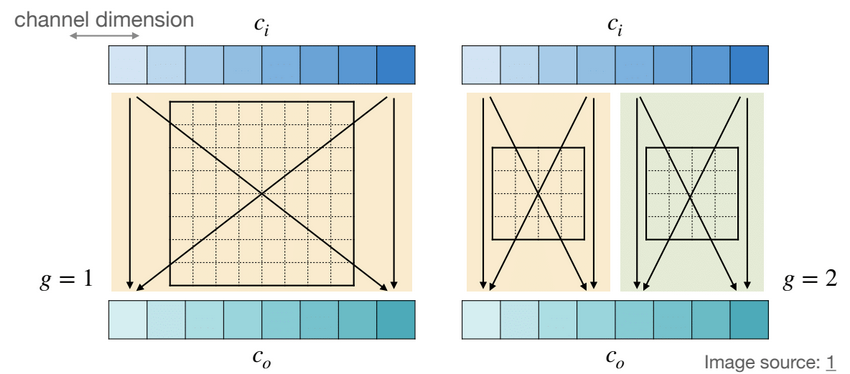

  group convolution



Depthwise Convolution Layer

Independent filter for each channel: \(g=c_i=c_o\) in grouped convolution

• shape of tensors:

  • Input Features X: \((n,c_i,h_i,w_i)\)

  • Output Features Y: \((n,c_o,h_o,w_o)\)

  • Weights W: \((c,k_h,k_w)\)

  • Bias b: \((c_o,)\)

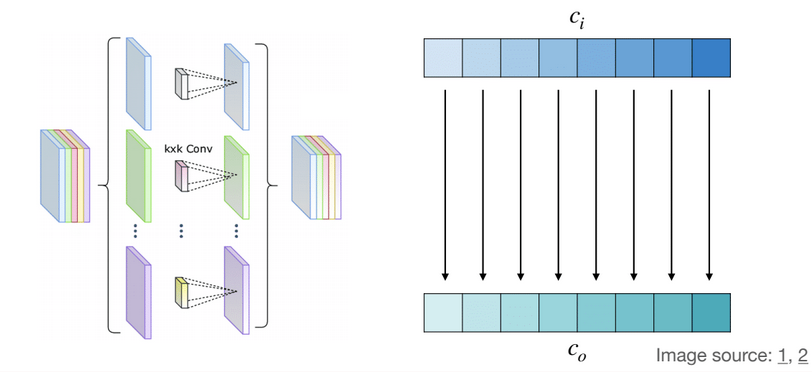

  depthwise convolution



Pooling Layer

Downsample the feature map to a smaller size

• The output neuron pools the features in the receptive field, similar to convolution

  • Usually, the stride is the same as the kernel size: \(s=k\)

• Pooling operates over each channel independently.

  • No learnable parameters

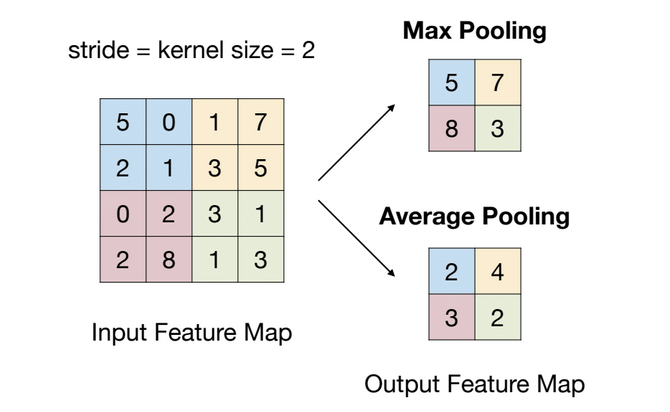

pooling

Normalization Layer

Normalizing the features makes optimization faster

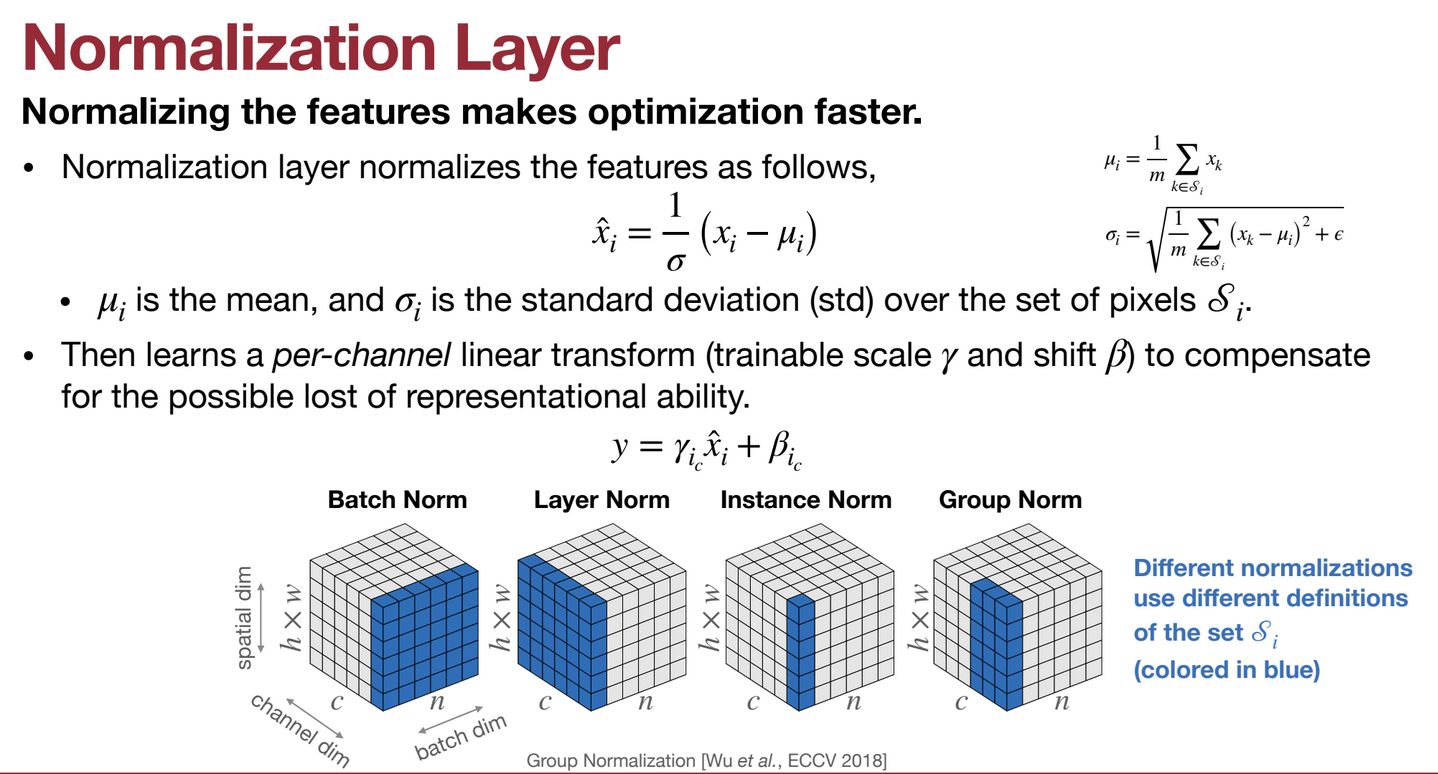

normalization

Activation Function

typically non-linear functions

the last layer of a neural network

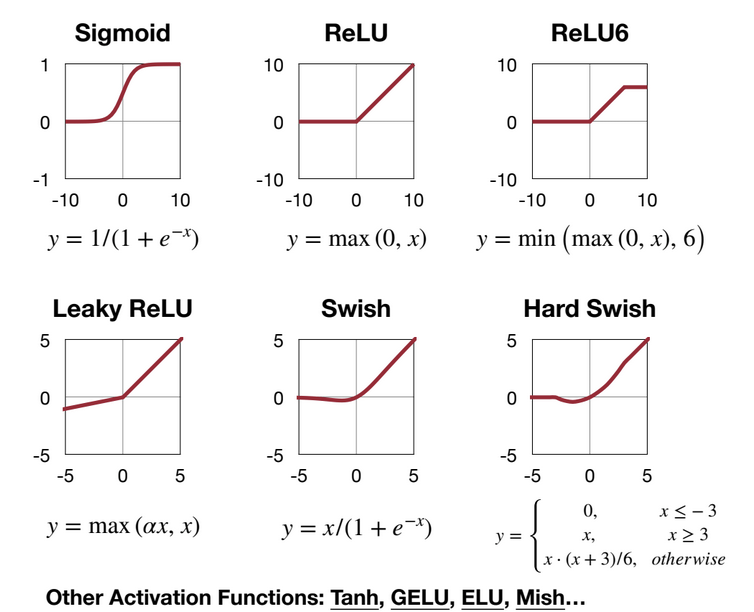

different activation funcs

Transformers

understand the keys, queries, and values in attention mechanisms?
