操作系统

考试时间：01月07日(10:30-12:30)

chap 1

chap 6

chap 7 deadlock

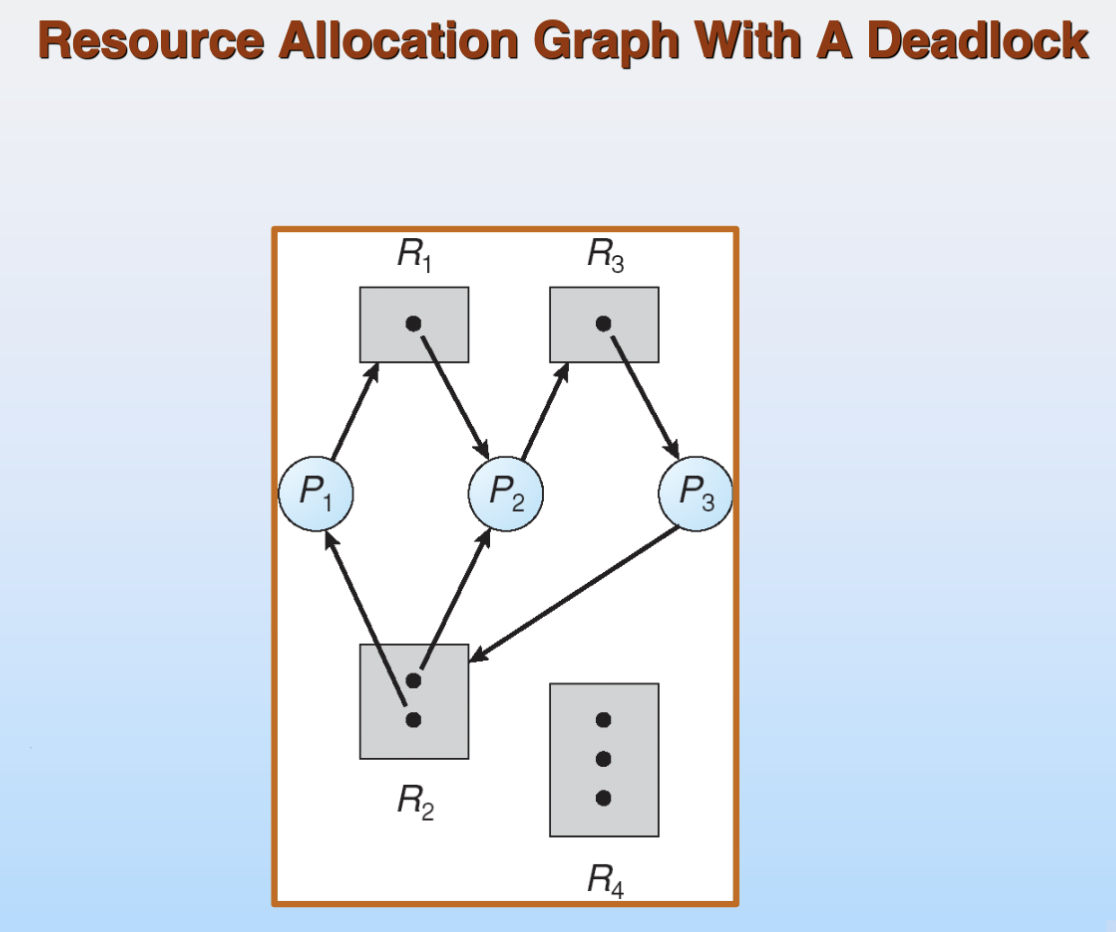

Resource allocation graph

If graph contains a cycle

• if only one instance per resource type, then deadlock.

• if several instances per resource type, possibility of deadlock.

deadlock handling

• Ensure that the system will never enter a deadlock state

  • Prevention

  • Avoidance

• Allow the system to enter a deadlock state and then recover - database

  • Deadlock detection and recovery

• UNIX: Ignore the problem and pretend that deadlocks never occur in the system;

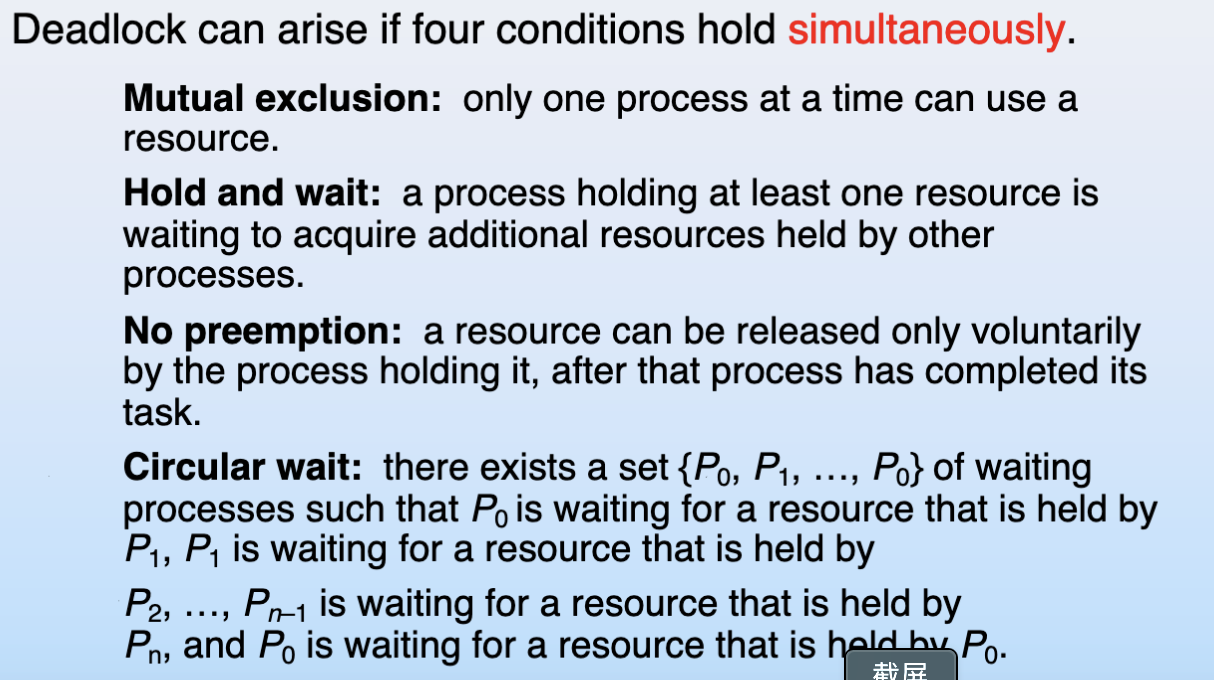

deadlock prevention

打破死锁的任一条件

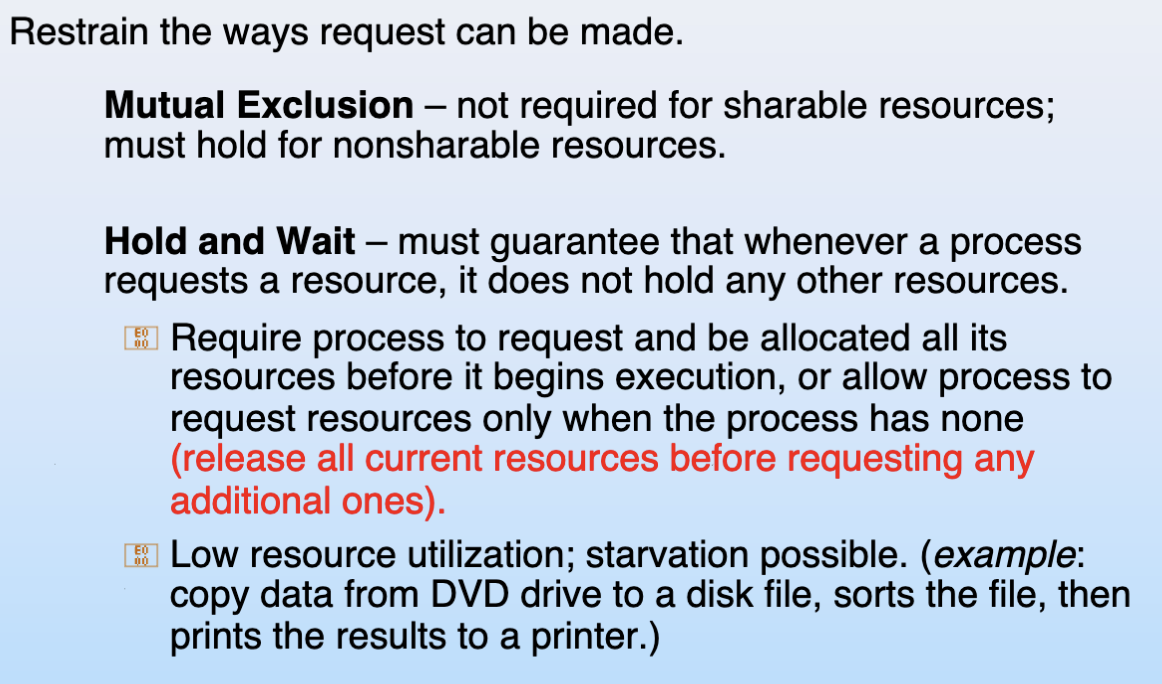

1. How to prevent mutual exclusion

   sharable 的可以，non-sharable 的没办法。

2. How to prevent hold and wait

   whenever a process requests a resource, it doesn’t hold any other resources

   require process to request all its resources before it begins execution

   allow process to request resources only when the process has none

   申请资源时不能有其他资源，要一次性申请所有需要的资源。

   low resource utilization; starvation possible

   利用率低，而且可能有进程永远拿不到所有需要的资源，因此无法执行。

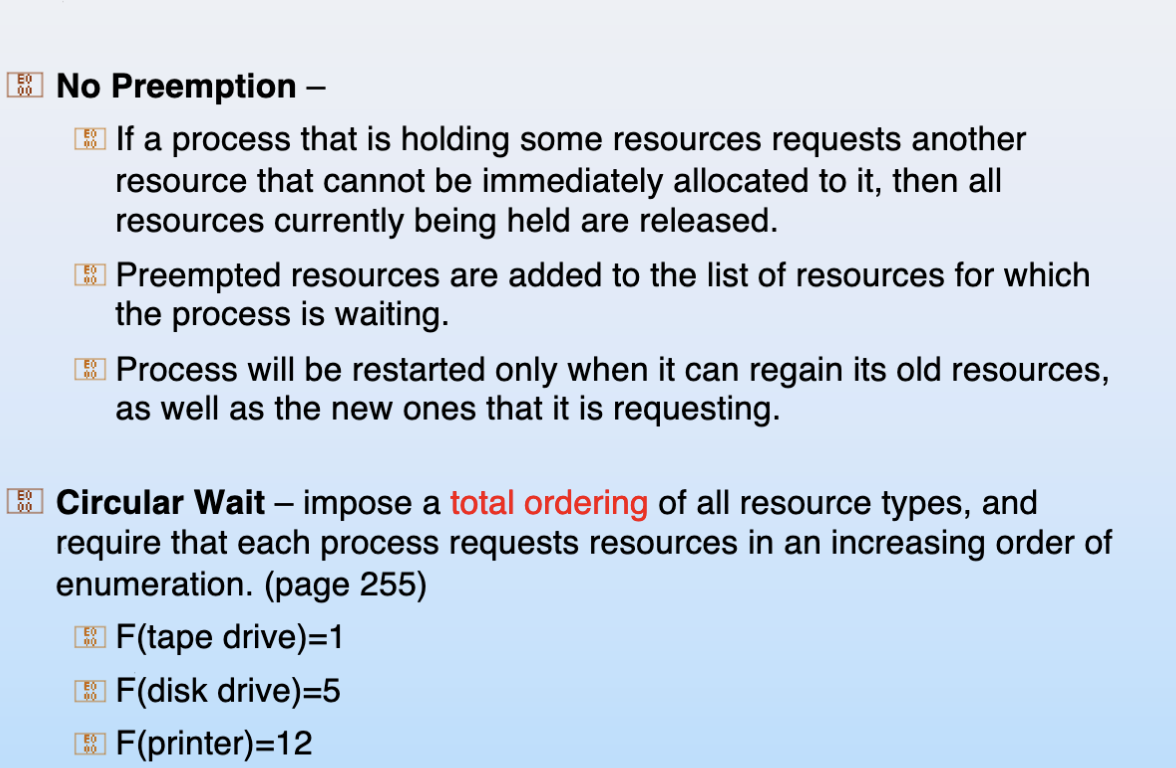

3. How to prevent no preemption

   如果得不到想要的资源。就把自己所有的资源释放。

4. How to handle circular wait

   impose a total ordering of all resource types

   给锁一个优先级排序，取锁的时候要求从高往低取锁。

   require that each process requests resources in an increasing order.

   Many operating systems adopt this strategy for some locks.

ppt

Deadlock Avoidance

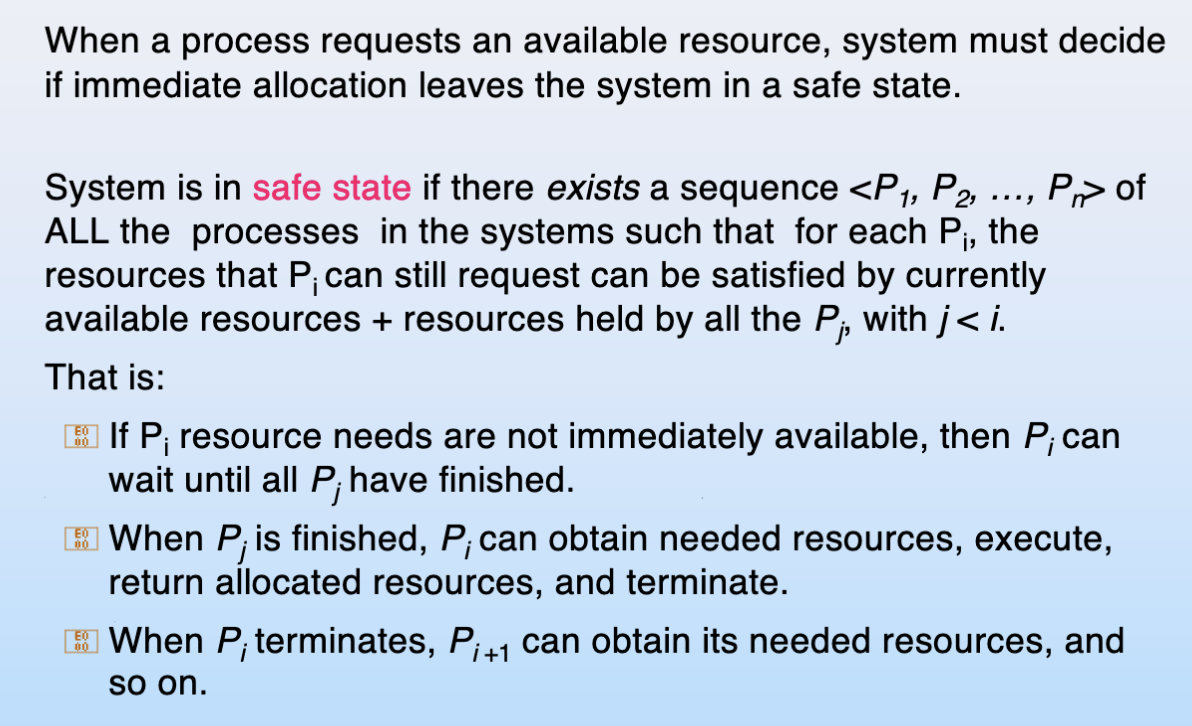

safe state

If a system is in safe state -> no deadlocks.

If a system is in unsafe state -> possibility of deadlock.

Avoidance is to ensure that a system will never enter an unsafe state.

Avoidance algorithms

• Single instance of a resource type Use a resource allocation graph

• Multiple instances of a resource type Use the banker’s algorithm

Single-instance Deadlock Avoidance

Resource-allocation graph can be used for single instance resource deadlock avoidance

• one new type of edge: claim edge

  • indicates that process may request resource

    想要，但还没有 request。

  • claim edge is represented by a dashed line

  • resources must be claimed a priori in the system.

• Transitions in between edges

  • claim edge converts to request edge when a process requests a resource.
  • request edge converts to an assignment edge when the resource is allocated to the process.
  • assignment edge reconverts to a claim edge when a resource is released by a process.

• Algorithm

  • Suppose that process Pi requests a resource Rj

  • The request can be granted only if:

    • converting the request edge to an assignment edge does not result in the formation of a cycle.

    • no cycle -> safe state

Multi-instances deadlock avoidance

Banker’s Algorithm

每个进程事先声明各个资源的最大需求。

通过 available（当前还没有被分配的空闲资源）, max（进程总共所需要的资源）, allocation（已经分配的资源）, need（还需要分配多少资源） 这四个矩阵刻画一个时间内各个进程对各种资源的持有和需求情况。

选取一个 need（的每一项都对应地）小于 available（的对应项）的进程，其运行完后会将 allocation 释放回 work（前面的进程执行完毕后，空闲的资源），以此类推。

若不存在，说明不安全。

Deadlock detection

Single Instance Resources

使用 wait-for graph

Pi->Pj means Pi waiting for Pj 周期性的检查是否成环，成环表明死锁

然而检测算法需要 \(O(n^2)\) 复杂度，\(n\) 为进程数

Multi-Instance Resources

类似于banker's algorithm，如果找不到任何安全序列，则说明系统处于死锁状态。

deadlock Recovery

Terminate deadlocked processes.

• options:

  abort all deadlocked processes.

  abort one process at a time until the deadlock cycle is eliminated.

• In which order should we choose to abort?

  priority of the process

  how long process has computed, and how much longer to completion

  resources the process has used

  resources process needs to complete

  how many processes will need to be terminated

  is process interactive or batch?

• Resource preemption

  Select a victim

  Rollback

  Starvation: How could you ensure that the resources do not preempt from the same process?

---

Chapter 10: basic of file

顺序读写（更快） 随机读写

Directory structure

A collection of nodes containing (management) information about all files

• Single-Level Directory A single directory for all users
• Two-Level Directory Separate directory for each user
• Tree-Structured Directories
• Acyclic-Graph Directories

Mount

将disk上的其他文件系统挂载到当前文件系统上

$ mount /dev/dsk /users

Access Lists and Groups

Three classes of users + owner + group + public

对于elf文件，必须具有x权限，才能执行； 对于目录，必须具有读写权限，才能搜索；

Chapter 11: File System Implementation

Data structure

Disk structure

In-memory structure

两个进程打开一个文件，有几个进程文件打开表，几个全局文件打开表 一个进程打开一个文件两次，有几个进程文件打开表，几个全局文件打开表

Virtual File System

虚拟文件系统是不是一个文件系统？是。

Allocation method

Contiguous allocation

Extent-based Allocation

Linked allocation

Simple-need only starting address Free-space management system no waste of space No random access, poor reliability Mapping

Indexed allocation

Dentry and Inode

Free-Space Management

Chapter 12: Mass Storage System

seek time (moving arms to position disk head on track) rotational delay (waiting for block to rotate under head) transfer time (actually moving data to/from disk surface)

Disk scheduling

SCAN (elevator) Algorithm

C-SCAN (with look)

RAID (redundant arrays of inexpensive disks)

Disk striping

Bit-level Striping Block-level Striping: different blocks of a file are striped + RAID-0 1. No redundancy + RAID-1 1. Mirroring 2. 50% utilization + RAID-2 ecc + RAID-3 1. bit-interleaved parity + RAID-4 1. block-interleaved parity + RAID-5 + RAID-6

Chapter 13: I/O Systems

Signal and Interrupt

Direct Memory Access

例题

11. Which of the following functionalities in an operating system does not need specialhardware support?

    A. process scheduling

    B. clock management

    C. address mapping

    D. interrupt system

    正确答案: A
